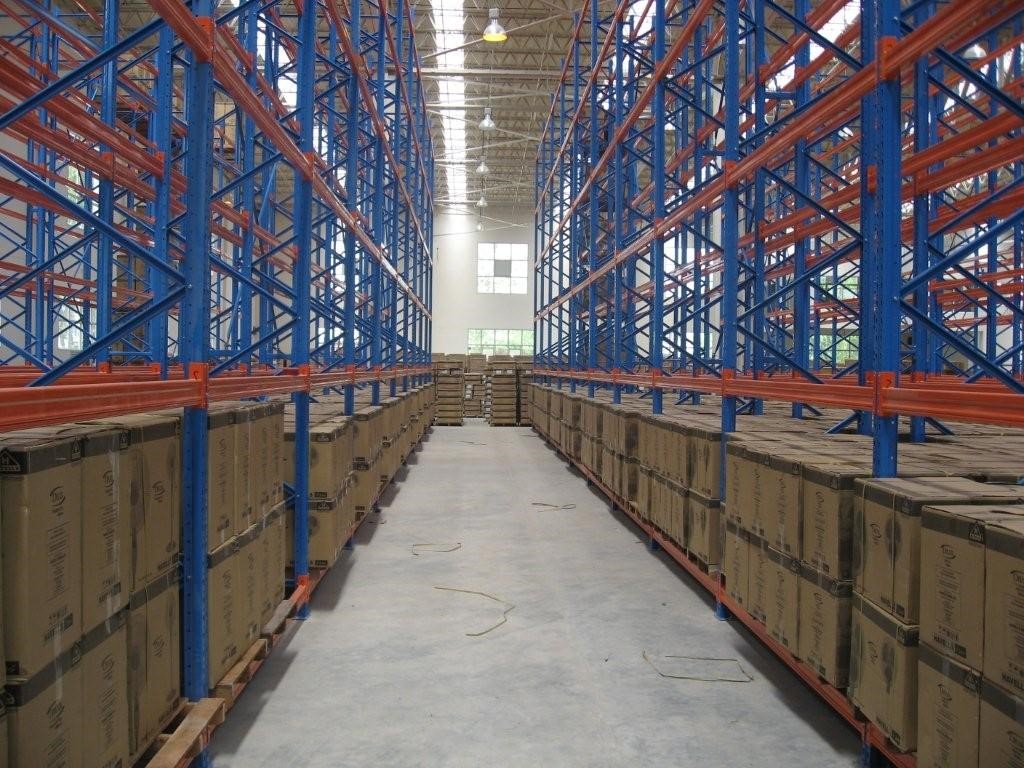

Heavy Duty Racking system
We are reckoned as the prime Manufacturer, Exporter, and
Supplier of Heavy Duty Racking System in India. Our Heavy Duty Racking System includes Adjustable Pallet Racking, which is the most widespread pallet storage
system in the market, due to its characteristics and to the ease with which it can apply in all branches of industry. Basically, the Heavy Duty Racking System
is comprised of single and double sided racks arranged in such a way that the aisles permit access to each and every pallet position giving 100% selectivity.
The Heavy Duty Racking System can be served by different types of material handling equipment from a pallet truck to a forklift truck or a sophisticated storage
/ retrieval crane.
Palletized racking system
Standard sizes:
• height: 3000 / 4500 / 6000 mm
• Length : 2300 / 2700 mm
• Depth: 800 / 1000 mm
• Weight (UDL) : 1 ton – 2 ton per level .
Non palletized racking system
Standard sizes:
• height: 3000 / 4500 / 6000 mm
• Length : 2300 / 2700 mm
• Depth: 800 / 1000 mm
• Weight (UDL) : 1 ton – 2 ton per level
Medium Duty Racking System
We are Manufacturer and Supplier of Medium Duty Racking System in India.
Our Medium Duty Racking System includes Adjustable Non Pallet Racking, which is the mostly used for storing loose materials on shelving’s with manual operation.
These types of racks can be a higher version of slotted angle racking system with a medium range of load carrying capacity. Due to its characteristics, with ease
it can apply in all branches of industry. Basically, the Medium Duty Racking System is comprised of single and double sided racks arranged in such a way that the
aisles permit access to each and every pallet position giving 100% selectivity. The Medium Duty Racking System can also be served as palletized racking system by
different types of material handling equipment i.e. stacker.
Non palletized racking system
Standard sizes :
• height: 1000 / 2000 /3000 mm
• Length : 2000 / 2300 / 2700 mm
• Depth: 500/ 800/ 1000 mm
• Weight (UDL): 0.25 ton – 1 ton per level.
Light Duty Racking System (Slotted Angle/2-Tier Slotted Angle Racking system)
Slotted Angle Shelving cover all storage requirements ranging from totally planned requirements to most immediate need.
The system is ideal for the manual storage of light loads.
Delta slotted angles made from quality steel are available in 4 flange dimensions to suit every possible need. The unique slot pattern in metric measurements gives maximum versatility in bolting positions and rigidity in construction.
With Delta slotted angles you get the flexibility in designing and building structure like back to back storage and Two Tier storage.
Shelving racking system
Standard Sizes:
• height: up to 3000 mm
• Length : 750 / 900 / 1200 mm
• Depth: 300 /375 /450 /600 mm
• Weight (UDL): 40 Kg to 200 kg per level .
Cantilevel Racking
2 & 3 Tire Racking Systems
